SF-542
SF-542
SF-542
SF-542
SF-542
SF-542
SF-542
SF-542

SF-542

  • Details
  • Features

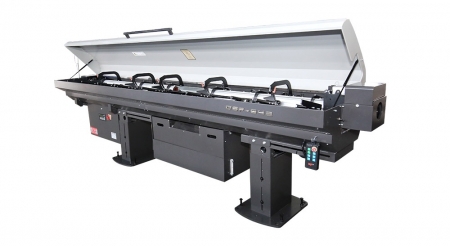

ModelDSF-20DSF-26DSF-32DSF-35DSF-37DSF-42
Specifications2.5m/3.0m/3.6m
Guide Channel21mm27mm33mm36mm38mm43mm
Bar Diameter5-20mm5-26mm5-32mm5-36mm5-38mm5-42mm
Bar CapacityDepends on bar diameter
Bar Length2700/3200/3800mm
Machine Wight2.5m-860kg/3.0m-890kg/3.6m-1000kg
Air Pressure6kgf/cm2 70psi
TransmissionSERVO MOTOR
LubricantFK ISO C G68/FK HYDRAULIC OIL 68
Capacitu38L（10GALLON）
Power Consumption810W
Power Supply3P*220V 50*60Hz

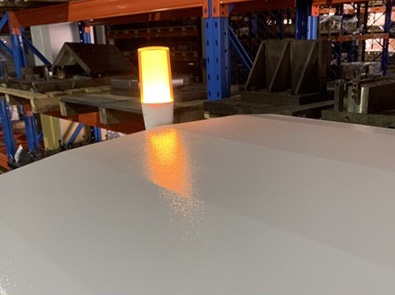

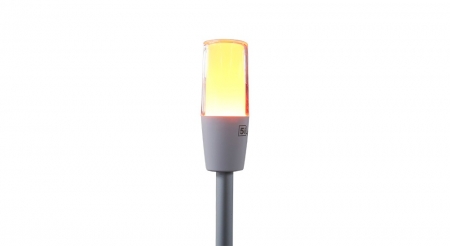

  • LED remote monitoring
    LED light external display, the information such as bar length, material change, feeder abnormality, lathe abnormality and other information can be visually displayed by LED light, which is convenient for staff from a long distance monitor. (patent)    		Smart HMI
    Dedicated HMI, easy to set up and operate, and built-in multi-function mode selection to meet different needs.    		Electronic control system
    Full-featured PLC controller and comprehensive database software concept, position, torque and speed in feeding work, with CNC lathe, precise control.

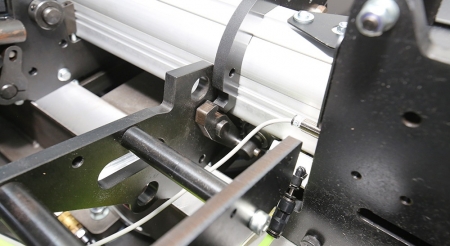

    Anti-vibration system
    V-shaped anti-vibration block group, adjust the anti-vibration block according to the size of the bar, save the replacement time and cost of the anti-vibration block, and can use the round anti-vibration block group.    		Hand control

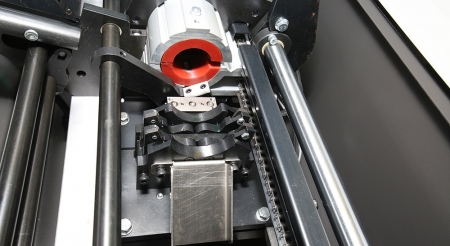

    Mobile hand control box, easy to operate and ergonomic. Fixed seat design, not easy to fall off.    		Adjustment-free clamping system
    The size of the material does not need to be adjusted, the clamping force is enhanced, and the clamping is not loose, saving time and convenience.
