SF326
SF326
SF326
SF326
SF326
SF326
SF326
SF326

SF326

  • Details
  • Features

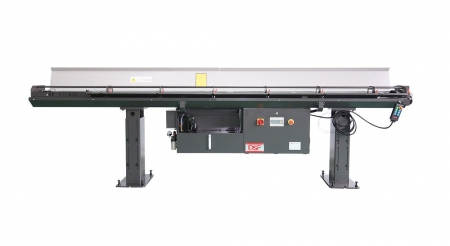

  • ModelSF326
    Bar diameter range3-26
    Bar length2.5/3.2
    Machine weight378/393
    Overall length,mm3355/3950
    Overall width,mm720
    Maximum bar length,mm2600/3200
    Bar capacityDepends on bar diameter
    Air pressure,bar(psi)5-7kg/cm2
    Power supply220V3p（Can be adjusted according to the power supply of the lathe）
  • Hose sizePress bar sizeApplicable bar rangeInner diameter of lathe spindle
    87(3)~88
    1110(3)~1011
    1413(4)~1314
    1716(4)~1617
    1918(4)~1819
    2120(5)~2021
    2322(5)~2223
    2524(5)~2425
    2726(5)~2621
    2928(5)~2829


  • Features

    ● The body is thin and small, saving installation space.

    ● Wear-resistant sound-absorbing hose.

    ● Special-shaped material feeding function.

    ● Easy to operate and strong working ability.

    ● Oil film type, no noise.


    PLC controller

    ● The feeder uses PLC, which has a number of parameter setting functions, good stability and easy maintenance.

    ● The multi-action control box is easy to operate.

    ● Simple I/O interface, can be connected with any NC, CNC lathe.

    ● Feeding thrust can be adjusted by PLC.

    ● With abnormal motion detection function.

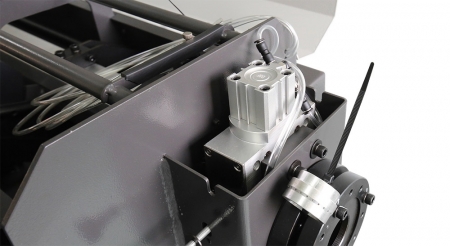

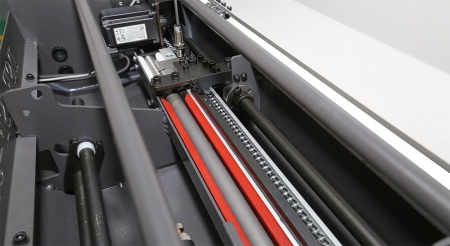

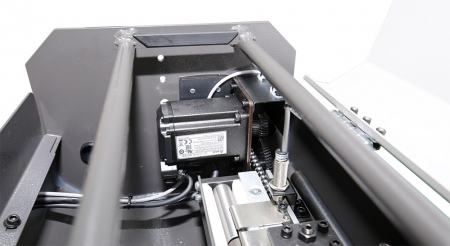

  • Wear-resistant and quick-change hoses, with good anti-scalding and sound-absorbing effects.The improved clamping system is really stable, the clamping size does not need to be adjusted, the clamping and feeding speed is fast, the material changing time is short, and the output value is improved.Using AC servo motor feeding electronic tracking synchronization, fast and stable.
