Low Temperature Vacuum Evaporator
Low Temperature Vacuum Evaporator
Low Temperature Vacuum Evaporator
Low Temperature Vacuum Evaporator
Low Temperature Vacuum Evaporator
Low Temperature Vacuum Evaporator

Low Temperature Vacuum Evaporator

● Low-temperature vacuum distillation design, the vacuum degree is maintained at about -96KPa to -97KPa, immersed heat exchanger, uses the heat source of the compressor to heat the distillation, and uses the refrigerant to generate cold energy for condensation, no additional supporting facilities for adding cooling water are required. ,Energy conservation.

● Using negative pressure to lower the boiling point of the raw liquid, boil and evaporate at 35°C to 37°C after heating, and achieve the separation and concentration of water and waste through the physical change of the raw liquid form, and the treatment process is green and environmentally friendly.

● It can process corrosive waste liquid, the concentration ratio can reach up to 95%, and the COD (chemical oxygen demand) can be reduced up to 99%, which greatly reduces the cost of waste water treatment.

● Safe and reliable, intelligent monitoring, can realize 7*24 hours fully automatic operation.

● Wide range of applications, wastewater from machining, manufacturing, textile, printing, electroplating, pharmaceutical and other industries can be treated.


  • Details
  • Features
Product ModelModelDaily processing capacity (L)Energy consumption per ton (kWh/T)Installed power (kW)Current (A)Weight (kg)Size (cm)
CG/CGY50050017077500229x145x186
CG/CGY1000 100015011111200250x120x240
CG/CGY1500 150015018161500250x120x240
CG/CGY2000 200015025272000320x160x260
CG/CGY3000 300014028363000350x160x260
CG/CGY4000 400014033433500350x160x300
CG/CGY5000 500014048604000370x160x320
CG/CGY6000 600014057714500370x160x320
CG/CGY8000 800014085885000450x220x320
CG/CGY10000 9500140981255300450x250x350
CG/CGY12000 120001401121405800450x250x400
CG/CGY14000 140001401251706000520x250x420
CG/CGY15000 150001401451766500580x250x420
CG/CGY17000 170001401632007000600x250x450
CG/CGY19000 190001401732207500650x250x450
CG/CGY24000 240001402002458000650x250x450

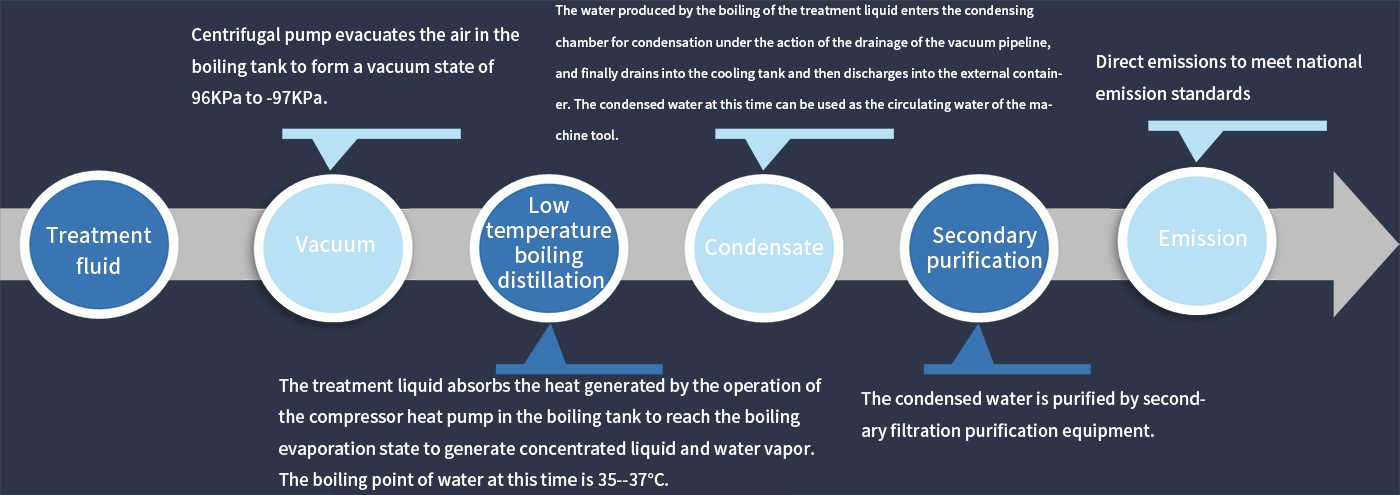

Product working principle and process


■ High concentration ratio

According to different industrial waste liquids, the average concentration ratio can reach more than 90%, that is, only 6L of ultra-concentrated liquid remains after 100L of wastewater treatment, and 94L of distilled water can be reused. While maintaining the treatment efficiency of high concentration ratio, it also further reduces water costs. .


■ Customization and Automation

It can be customized according to customer demand, and the product can realize automatic control, 24 hours of operation without human intervention, and the extremely low manpower demand can meet the maximum operating efficiency.


■ Product quality

1. Use the highest quality materials and components on the market, and use original imported components, and build a supply chain system with internationally renowned brands such as DANFOSS, GRIOMRON, SMC, etc.

2. The service life of the equipment is too long.



■ Reliability

1. All equipment and parts are made of high-end components, and all parts are easy to dismantle, which is convenient for daily maintenance;

2. The combination of PVC and flange, all pipes can be easily checked and opened, easy to manage;

3. With a professional after-sales service team and a complete service network, it can respond to any needs of customers in a timely and efficient manner.


■ Wide range of applications

Application industry：

Landfill leachate, hazardous waste disposal, pharmaceutical, chemical, semiconductor, surface treatment, electroplating, PCB, coating, machining, equipment manufacturing, auto parts, printing, cables, injection molding, etc.


Applied water species：

High-concentration organic wastewater, high-salt wastewater, MVR mother liquor, multi-effect evaporation mother liquor, pharmaceutical wastewater, membrane concentrate, chemical nickel wastewater, coating wastewater, degreasing wastewater, phosphating wastewater, cleaning wastewater, spray tower wastewater, cutting wastewater , emulsification waste liquid, oily waste water, wire cutting waste liquid, wire drawing waste liquid, rolling waste liquid, grinding waste liquid, flaw detection waste water, washing kettle water, developing waste liquid, other (nmp waste water, printing waste water, mopping waste water, etc.)
